Ultrasonic Equipment

E992e - Automated Cleaning and Passivation System

Ultrasonic Cleaners: Dental / Surgical Lab Passivation


e992eThe Esma E992 is a self-contained, fully-automatic ultrasonic cleaner and passivation system. Within a single console, using a series of fill-and-drain sequences, parts are ultrasonically cleaned, then passivated, then repeatedly ultrasonically rinsed to ensure a thorough cleaning and passivation. After the final rinse the tank is drained and the hot air drying cycle occurs. Operator interaction is managed through a touchscreen interface; eliminating exposure to acids or sterilized parts. Durable stainless steel construction, an unconditional 1-year warranty, and industry-recognized customer service make the Esma E992 passivation system a key factor to ensure an efficient, productive surgical facility.

Download Brochure Request A Quote

Specifications:

  •   Cabinet Dimensions: 28"W x 22"L x 39"H
  •   Tank Dimensions: 24"W x 14"L x 12"D
  •   Tank Volume: 18 gallons
  •   Storage Tanks: 30"W x 15"L x 30"D each of (3)
  •   Ultrasonic Power: 1800 watts
  •   Hot Air Dryer: 3000 watts
  •   Construction: All stainless steel, RFI filtered
  •   Electrical: 120v ultrasonic system, 230v hot air dryer

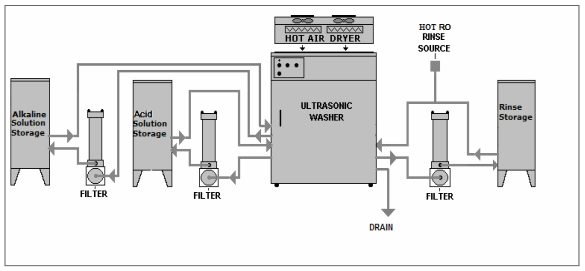

e992e diagram

About Esma, Inc.

Since 1972 Esma Incorporated has been manufacturing high quality ultrasonic cleaners and washers as well as bench top electropolishing equipment. Esma offers a unique approach to automating the ultrasonic cleaning process by transferring liquids to a single ultrasonic process chamber from individual heated storage tanks.
